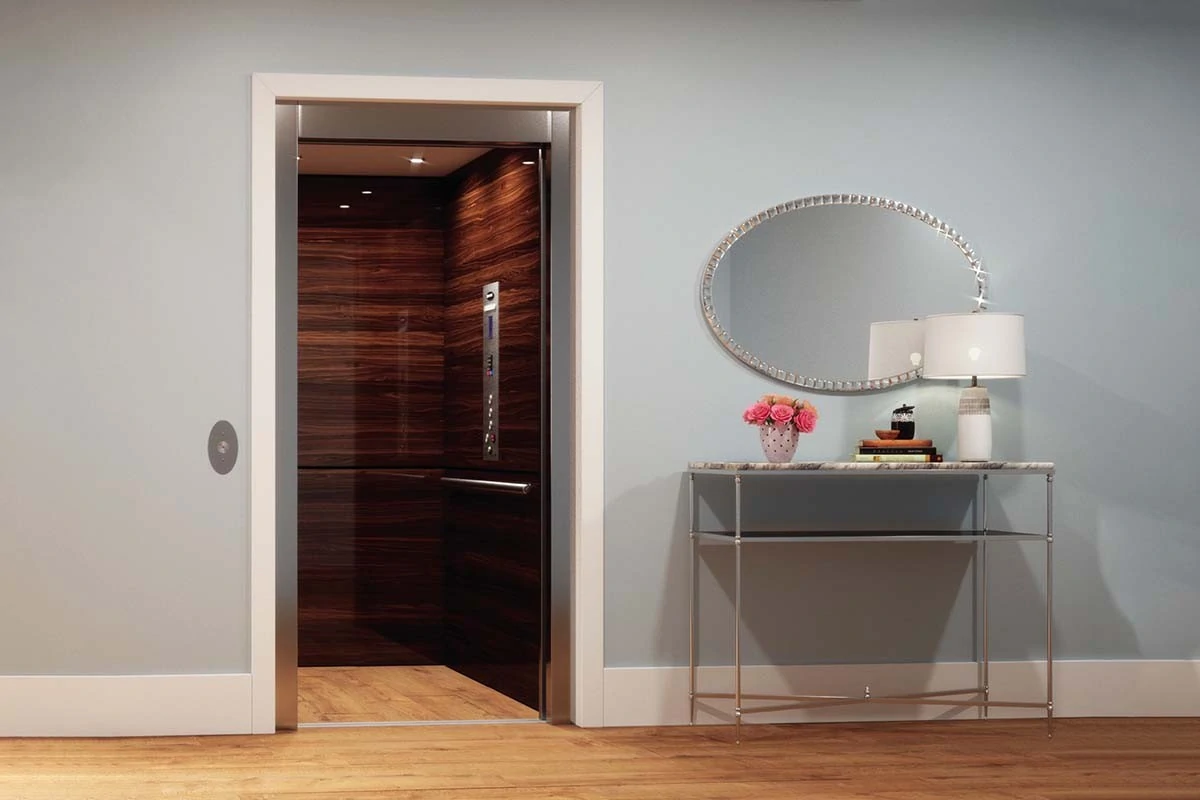

Eclipse Elevator
Home elevator
- Our best-selling home elevator; unique modular design with machine roomless option
- Durable geared chain drive for a reliable, stable ride
- Services up to 6 stops over a maximum travel distance of 50' (up to 60' in some regions)
- Capacity up to 950 lb; Eclipse HD version available for higher capacity (depends on local codes)
- Openings can be configured for same-side, straight-through or 90º entry and exit, depending on the layout of your home
- Customize cab interior, fixtures and doors
The Nuts and Bolts
FEATURES
- Machine roomless: Unique design requires only a small space in a closet for components, so a machine room is not needed and less installation time is usually required. In some regions, controller can be placed inside shaft (code permitting).
- Compact chain drive system: Requires only 8' ceilings. No ceiling shaftway construction is required.

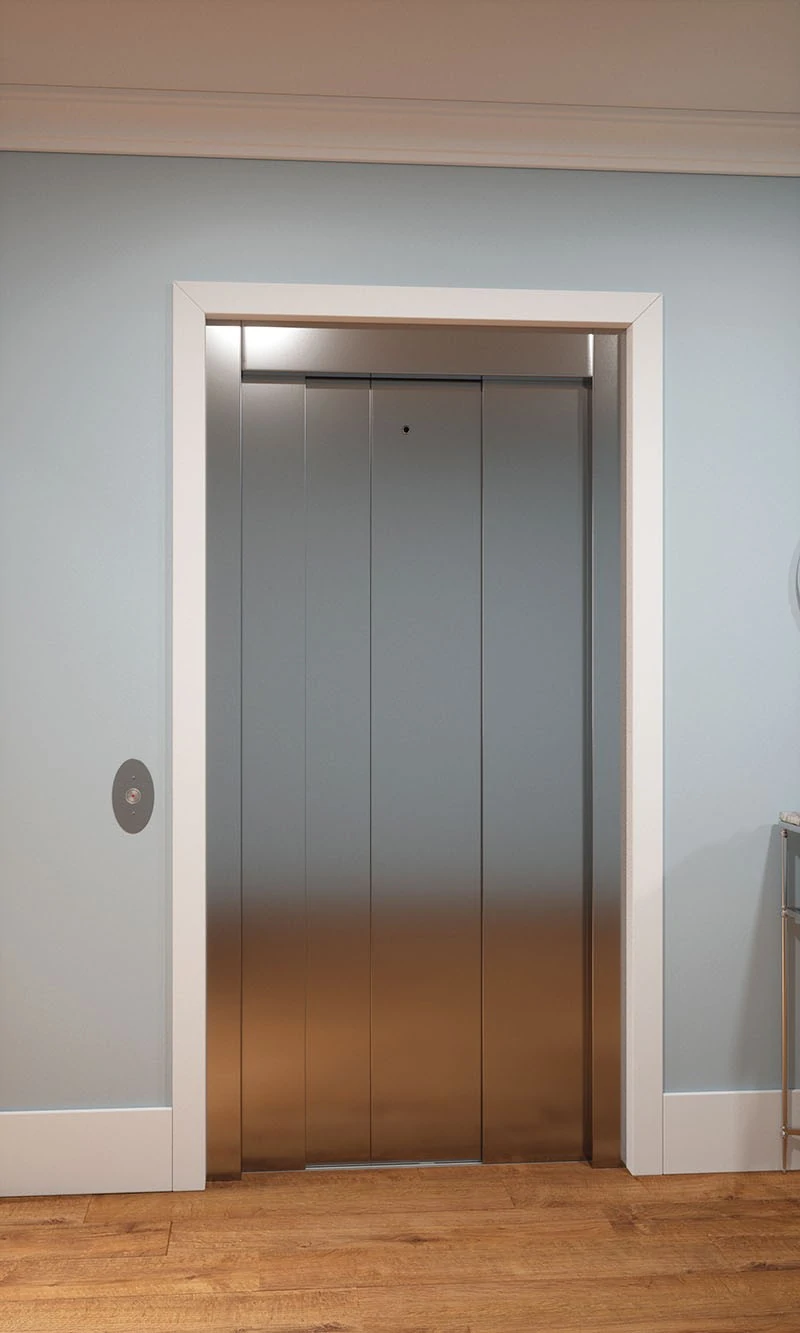

- Hide-away gate: Innovative gate system tucks away for maximum entryway and interior space.
- Easy-access service panel: For machine roomless configurations with controller in the shaft, a service panel can be located inside or outside the shaft, making it accessible for maintenance.

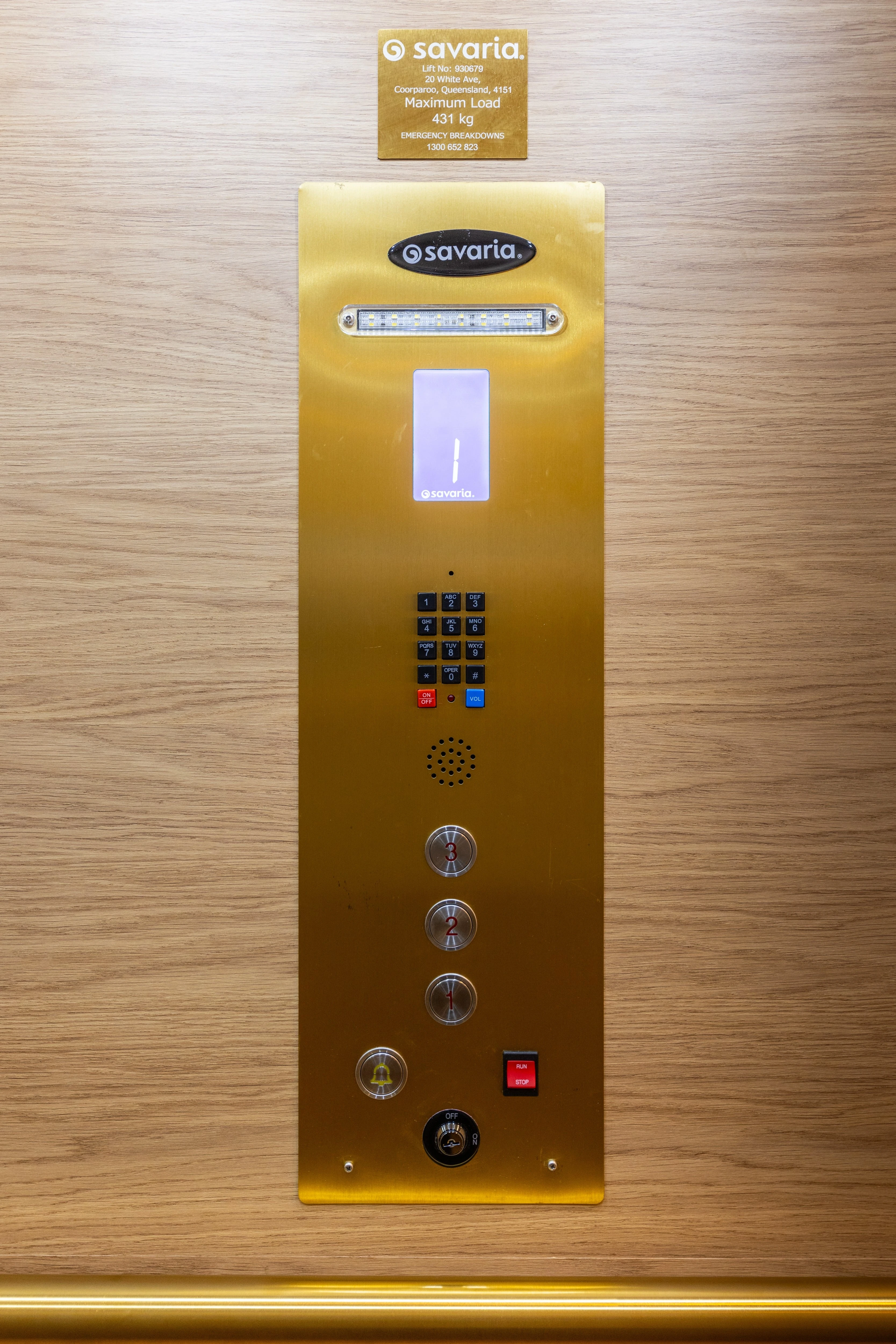

- Other standard features: Fully automatic operation, modular rail for easy construction, automatic cab on/off interior lighting, digital display in car operating panel, surface-mount telephone, white ceiling with 4 LED pot lights, melamine interior in choice of colors or MDF panels.
- Standard finishes: Flat melamine or unfinished MDF (see cab configurator), clear or bronze anodized aluminum cab operating panel and hall call stations, double plywood floor, white ceiling.
- Safety features: Battery operated (UPS) emergency lowering and lighting, hand-crank manual lowering, motorized braking, lockable control panel, elevator door interlocks, emergency stop switch, in-use indicator lights on hall stations, slack chain brake system.
